Rotating livecenters Heavy loads - CSF4

Models »

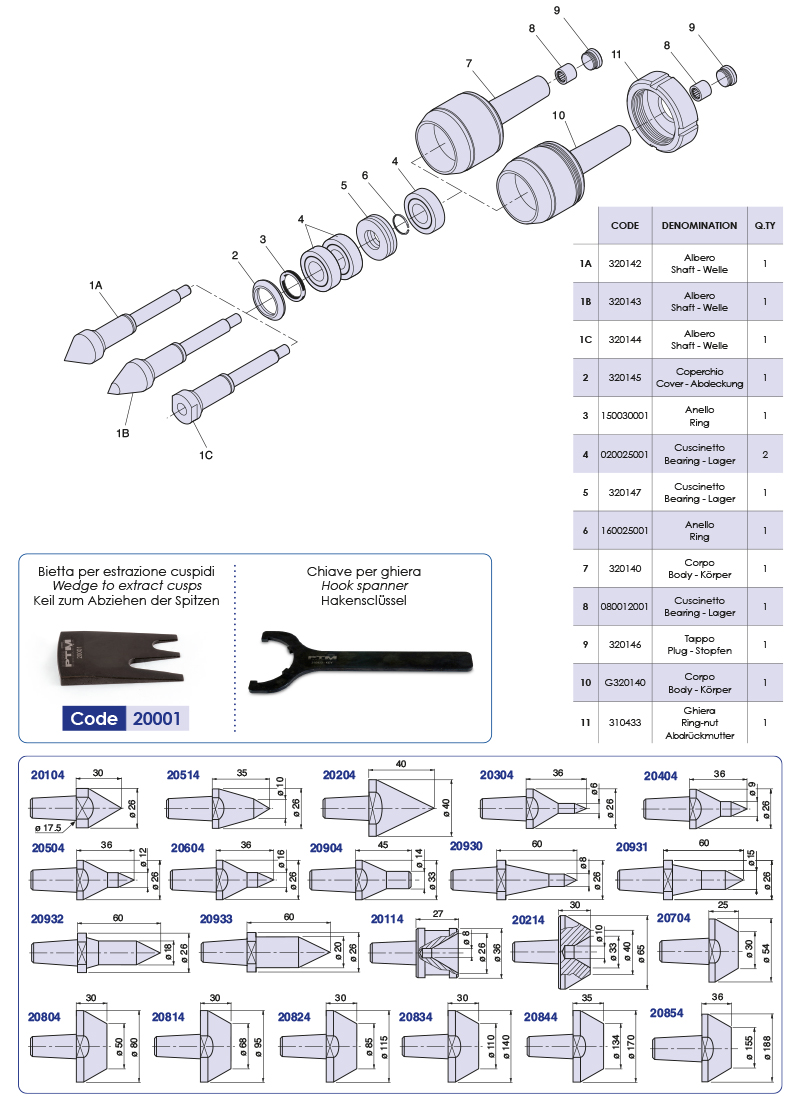

Spare parts »

Order or require more informations »

Live center type CSF4/S (standard) for taper 4
Live center type <strong>CSF4/S </strong>(standard) for taper 4
Code: 32014
Max load From N 2300
Max eccentricity 0,003 mm
R.p.m. 4000
Code: G32014
With ring nut
Live center type CSF4/L (copying point) for taper 4
Live center type <strong>CSF4/L</strong> (copying point) for taper 4
Code: 32034
Max load From N 2000
Max eccentricity 0,003 mm
R.p.m. 4000
Code: G32034
With ring nut
Live center type CSF4/R (with spare point) for taper 4
Live center type <strong>CSF4/R</strong> (with spare point) for taper 4
Code: 32024
Max load From N 1700
Max eccentricity 0,005 mm
R.p.m. 4000
Code: G32024
With ring nut

Rotating livecenters Heavy loads - CSF4 - NUOVA PTM
