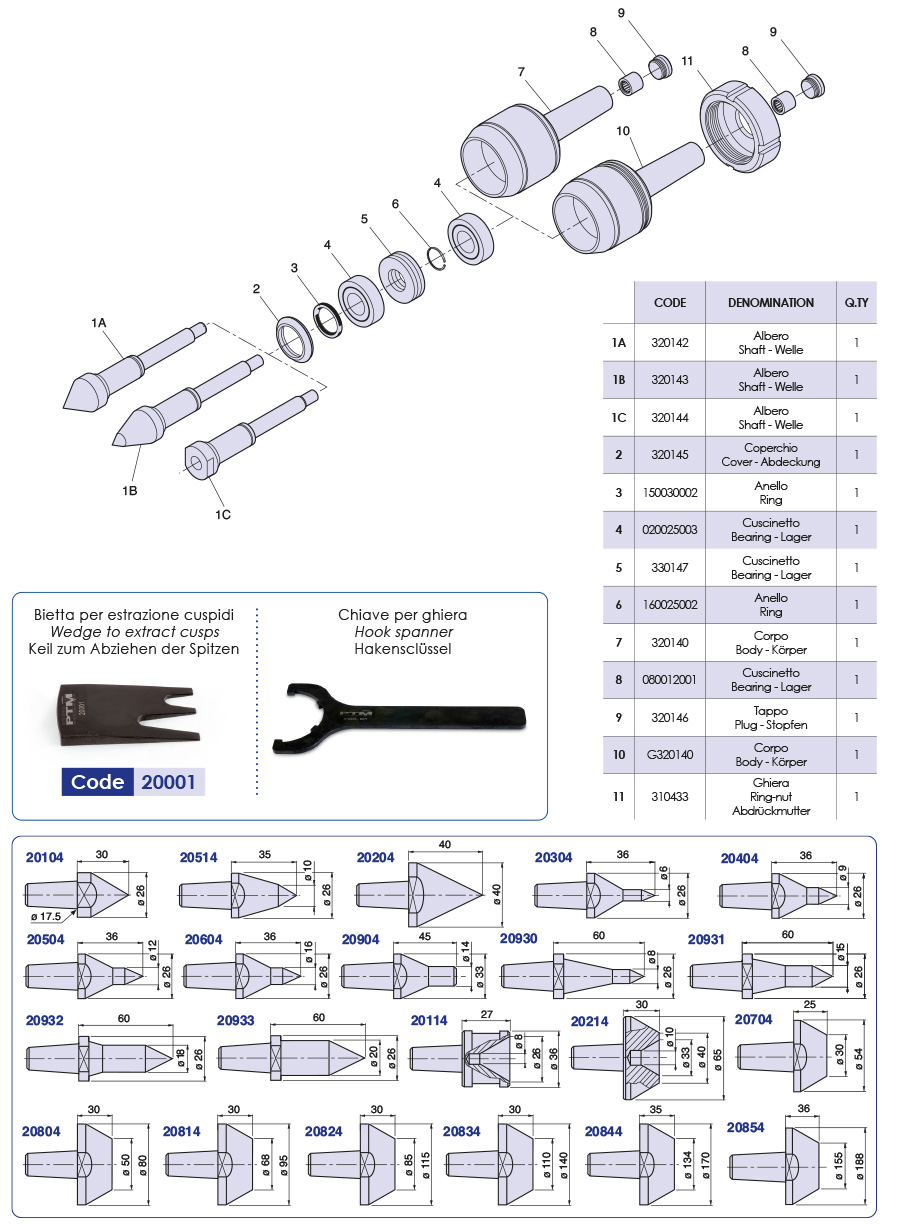

Rotating livecenters - CSK4

Models »
Spare parts »

Order or require more informations »

Live center type CSK4/S (standard) for taper 4
Live center type <strong>CSK4/S </strong>(standard) for taper 4
Code: 33014
Max load From N 2300
Max eccentricity 0,003 mm
R.p.m. 4000
Code: G33014
With ring nut
Live center type CSK4/L (copying point) for taper 4
Live center type <strong>CSK4/L</strong> (copying point) for taper 4
Code: 33034
Max load From N 2000
Max eccentricity 0,003 mm
R.p.m. 4000
Code: G33034
With ring nut
Live center type CSK4/R (with spare point) for taper 4
Live center type <strong>CSK4/R</strong> (with spare point) for taper 4
Code: 33024
Max load From N 1700
Max eccentricity 0,005 mm
R.p.m. 4000
Code: G33024
With ring nut

Rotating livecenters - CSK4 - NUOVA PTM
